Opening — why a structured framework saves time

Automating a pond water aerator via an app is not just about flipping a schedule — it’s about defining predictable, safe behavior for mechanical systems. A repeatable framework turns vague goals into testable rules. Think of it like programming a ceiling rotating fan: you want clear inputs (sensors), a control strategy (speed, duty cycle), and reliable outputs (motor commands). Using that logic prevents surprises when the aerator motor meets cold nights, algae blooms, or power hiccups.

Core principles of the automation framework

Keep the system simple, observable, and fail-safe. Simplicity reduces edge cases. Observability means logging key variables like dissolved oxygen (DO) and pump RPM so rules can be validated. Fail-safes include thermal cutoff and manual override. Industry terms to note: PWM for motor control, motor controller diagnostics, and Wi‑Fi/BLE connectivity for the app link layer.

Step 1 — define objectives and acceptance criteria

Start with measurable goals: target DO range, run-time windows, noise limits, and energy budgets. Convert each goal into acceptance criteria for field testing. Example set:

• Maintain DO ≥ 5 mg/L during summer daylight hours.
• Limit motor runtime to X hours per 24-hour period to stay within energy budget.
• Allow manual override from app with immediate PWM set to 0.

These criteria become the pass/fail checks during commissioning and routine audits.

Step 2 — map sensors, actuators, and communication

List the hardware and interfaces: DO sensor, water temperature probe, float switch, aerator pump with motor controller, and the gateway (Wi‑Fi or BLE). Document signal ranges and sampling cadence. For the motor, record RPM and control method (on/off vs variable-speed PWM). This map tells you what rules are feasible and where you need buffering or debouncing logic.

Step 3 — design rule templates

Create reusable templates rather than ad hoc scripts. Common templates for aerators:

• Time-based: run at set intervals (e.g., 10 min on, 50 min off) — low complexity.
• Condition-based: trigger when DO < threshold — reactive.
• Adaptive: scale duty cycle with temperature and DO trends — efficient but needs validation.

Include hysteresis and deadband to avoid rapid toggling. For example, start the pump at DO ≤ 4.8 mg/L and stop at DO ≥ 5.3 mg/L. That small gap prevents oscillation of the relay or motor controller.

Step 4 — implement in the app and device firmware

Translate templates into the app’s rule-builder UI or backend scheduler. Ensure secure pairing and OTA firmware paths so updates to control logic can be deployed safely. Test remote commands and state reporting; verify that app-initiated stop overrides any active schedule. Use basic telemetry: event timestamps, last DO reading, current duty cycle, and error codes from the motor controller.

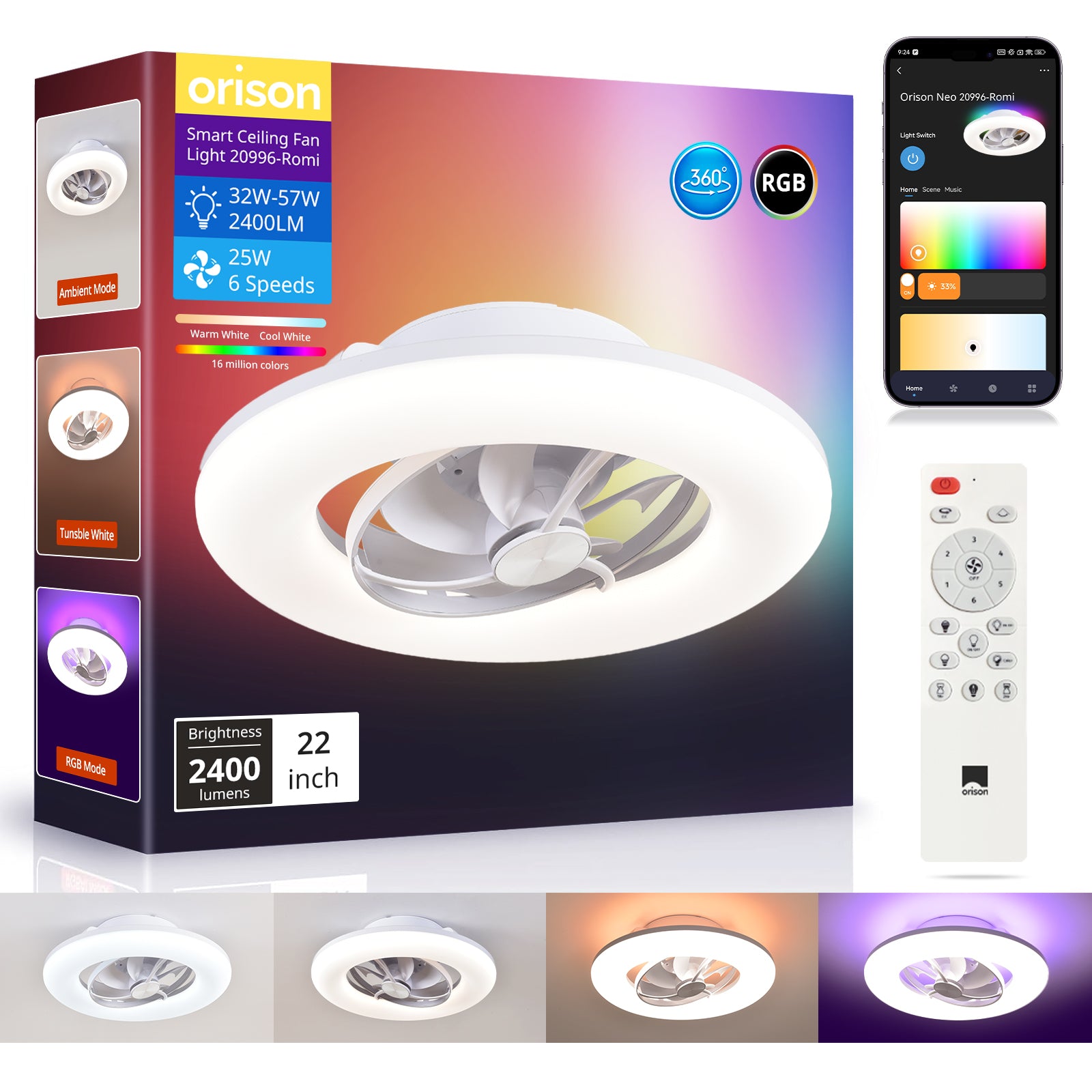

Real-world anchor: products like the Orison smart oscillating ceiling fan demonstrate how device scheduling, remote pairing, and OTA updates work in the field. That same device-level discipline—clear telemetry, remote override, and firmware integrity—applies to aerator systems.

Step 5 — test, validate, and iterate

Run a staged validation: bench test the motor controller and sensor chain, then perform a controlled field test on the pond during low-risk hours. Log results for at least a week to capture daily cycles. Validate acceptance criteria and adjust thresholds. If a rule causes frequent manual overrides, simplify it — pragmatic controls beat clever but brittle ones.

Common mistakes and how to avoid them

1) Overfitting rules to a single day’s data. Avoid adjusting alarms after one outlier. 2) Ignoring communication failure modes — the app must show stale data clearly. 3) Skipping manual override and physical kill-switch testing. Always verify a human can stop the aerator locally. —

Operational checklist before deployment

Quick pre-launch checklist:

• Sensor calibration and timestamp synchronization.
• Failure mode behaviors documented (power loss, comms blackout).
• Energy budget verified against duty cycles.
• User roles: who can change rules in the app.

Summary of key insights

A framework gives you repeatable steps: define measurable goals, map hardware, choose template rules, implement with observability, and validate in the field. Emphasize simple, well-logged controls and clear fail-safes. Don’t chase complexity unless the telemetry supports it.

Advisory — three golden rules for evaluating strategies and tools

1) Metric-first design: pick the two most important performance metrics (e.g., average DO and energy per day) and optimize for them. 2) Telemetry completeness: ensure the system reports sensor readings, duty cycle, and error states with timestamps — you can’t iterate without data. 3) Safe defaults and manual override: default rules should protect the resource (keep aeration on during heat events) and always allow immediate human stop via app and local switch.

Orison models the device-level reliability you want—clear telemetry, secure pairing, and robust remote control—so think of that as the standard when selecting hardware and app platforms. —
