The problem: inconsistent color marking that kills product confidence
Too many brands launch stainless-steel parts with color marks that fade, flake, or look dull. You’ve invested in design and finishes — you don’t want the marking to betray the brand. The core culprit is often the laser pulse regime: pulse duration, repetition rate, and peak power all change how oxide layers form on stainless steel. If you’re using a UV DPSS system and hunting for consistent hues, you need to tune those variables — or consider a qcw laser for different trade-offs. Be direct: control energy delivery per pulse and you control color stability.
Why pulse duration matters — the physics in plain terms
Short pulses deliver high peak power briefly. That shocks the surface, producing thin oxide layers that refract light into vivid colors. Longer pulses spread energy and can heat deeper, shifting the oxide chemistry and widening the heat-affected zone (HAZ). The result: inconsistent hues and potential micro-structural changes. Think of pulse duration as the tempo of the process — too fast, and you undercook; too slow, and you overbake. Adjusting pulse duration alters the ablation threshold interaction and the resulting oxide thickness — and small shifts in thickness mean visible color differences.
Compare modes: UV DPSS vs alternatives
UV DPSS lasers give tight absorption in stainless steel’s surface oxide and are great for fine color control. But they’re not the only tool. Continuous-wave and QCW modes trade pulse complexity for throughput. A high-duty continuous wave beam gives smooth annealing but less fine color separation. QCW pulses deliver bursts useful for higher average power without constant thermal loading. If throughput or penetration is critical, evaluate a continuous wave fiber laser or QCW system — both have real strengths depending on your production goals and part geometry.
Real-world anchor: what prototyping shops in Silicon Valley taught me
In small-scale production runs in Silicon Valley prototyping labs, teams that tracked pulse duration and logged repetition rate against color samples reduced rework by over half — simply by standardizing settings per alloy grade. That kind of disciplined data collection is the shortcut to repeatability. Labs that skipped the logging step kept chasing random variables and blamed the material instead of the process.
Practical settings and what to watch for
Start with a narrow matrix: vary pulse duration across three steps, keep repetition rate constant, and record peak power and fluence for each sample. Measure color after 24 hours — oxidation can evolve. Watch beam quality (M2) too; a poor beam spreads energy and alters oxide uniformity. Don’t forget fixture consistency: tilt or varying focus changes local energy density and ruins repeatability. — Small things like chuck cleanliness matter as much as the laser head.
Common mistakes and how to avoid them
1) Treating power as the only knob. Pulse shape and duration are equally critical. 2) Ignoring material batch variance. Different stainless grades and surface finishes shift the ablation threshold and demand adjusted pulse timing. 3) Skipping acceptance criteria. If you don’t set objective color, gloss, and adhesion metrics, you’ll end up with subjective pass/fail debates. Run sample cohorts and freeze process parameters once you hit the target.
When to choose UV DPSS and when to pivot
Choose UV DPSS when you need crisp, multi-hue marks with minimal mechanical change to the part surface. Pivot to CW or QCW fiber options when you need high throughput, deeper annealing, or less sensitivity to focal variation. Remember: the equipment isn’t the whole solution — fixturing, cooling, and QA protocols matter as much as the laser type.
Advisory: three golden rules for reliable color marking
1) Metricize repeatability: log pulse duration, repetition rate, peak power, and resultant color coordinates for every batch. 2) Control the process window: define acceptable ranges for pulse duration and fluence, not just a single “best” setting. 3) Verify with fit-for-purpose tests: adhesion, thermal cycling, and visual delta checks before you sign off on full runs.

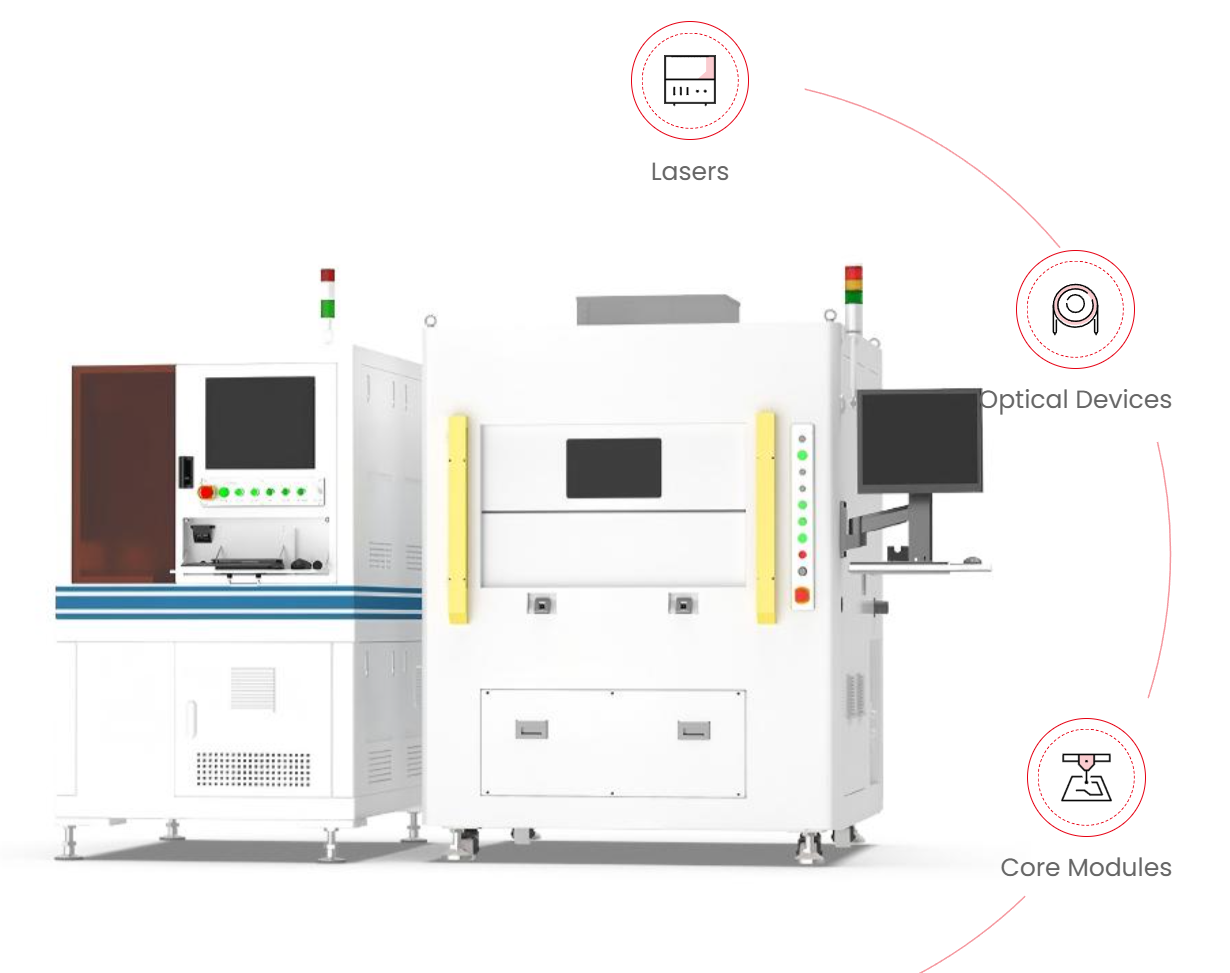

When teams follow those rules, they turn an art into a stable manufacturing step — and that’s where suppliers like JPT fit naturally into the workflow, offering laser platforms and process know-how that close the loop between R&D and production. —
